Day133 - STAT Review: Classification (3)

March 3, 2025 5 minute read

Practical Statistics for Data Scientists: Logistic Regression (1) (Mathematic Foundation: Odds, Logit Function, Formula, and Examples)

C11E3090-BE01-46E8-BAE0-324DD3A5C4D6_1_105_c

Logistic Regression

Logistic Regression is a widely used classification algorithm that predicts a binary outcome (e.g., 0 or 1, default or non-default, spam or not spam). It is similar to linear regression, but instead of predicting continuous values, it predicts probabilities using the logistic function (sigmoid function).

Logistic regression is comparable to multiple linear regression but with a binary outcome. Transformations allow the fitting of a linear model. Unlike K-Nearest Neighbor and naive Bayes, it uses a structured modeling approach like discriminant analysis. Its speed and efficiency for scoring new data enhance its popularity.

Key Terms for Logistic Regression

Logit
- The function that maps class membership probability to a range from $\pm\ \infty$ (instead of 0 to 1).
- = Log odds
Odds
- The ratio of “success” (1) to “not success” (0).
Log Odds
- The response from the linearized model is converted into a probability.

Logistic Response Function and Logit

Instead of modeling probability ($p$) directly, we model log-odds. The log-odds scale is linear, making it easier to work with. The model is interpretable: ($\beta_1$) represents the change in log-odds for a one-unit increase.

Why Do We Need a Transformation?

In linear regression, we assume:

$p =\beta_0 + \beta_1x_1 +\beta_2x_2+ \dots + \beta_qx_q$

However, this does not guarantee that $p$ will stay between 0 and 1, which of modeling $p$ necessary since probabilities must always be in this range. Therefore, instead of modeling $p$ directly, we transform it using the logistic (sigmoid) function.

The Logistic Response Function

The logistic response function (inverse logit function**) transforms a linear combination of predictors into a probability.

$p=\frac{1}{1+e^{-(\beta_0+\beta_1x_1+ \dots + \beta_q x_q}}$

We utilize the logistic function to keep predicted probabilities within the (0,1) range, allowing a smooth transition between class labels. This approach proves effective for classification problems.

Interpreting the Function

When ($\beta_0 + \beta_1 x_1 + \dots$) is large (positive), $p$ approaches 1.
When ($\beta_0 + \beta_1 x_1 + \dots$) is small (negative), $p$ approaches 0.
When ($\beta_0 + \beta_1 x_1 + \dots) = 0, \ p=0.5$ (the decision boundary).

From Probability to Odds

Instead of working directly with probabilities, we convert them into odds. Odds represent the ratio of the probability of success to the probability of failure.

$\text{Odds}(Y=1) = \frac{p}{1-p}$

For example,

If a horse has a 50% chance of winning $(p=0.5)$, then the odds are:
$\frac{0.5}{1-0.5} = 1$

(The event is equally likely to happen or not happen).
If the probability increases to 75%, the odds are:
$\frac{0.75}{1-0.75} = 3$

(The event is 3 times more likely to happen than not).

Converting to odds does not limit the result to (0,1) as probabilities do. Additionally, it facilitates a more precise interpretation of multiplicative effects.

From Odds to Log-Odds (Logit)

To simplify calculations, we take the logarithm of the odds:

$\text{log} \big( \frac{p}{1-p} \big) = \beta_0 + \beta_1 x_1 + \beta_2 x_2+ \dots \beta_q x_q$

This log-odds transformation (called the logit function) maps probabilities in (0,1) to values in ($-\infty , +\infty$), making it suitable for linear modeling.

By taking the log, we can convert a multiplicative relationship into an additive one (easier to work with) and remove the constraint on probabilities, allowing for a linear equation.

For example,

If odds = 3, then $\log(3)=1.1$
If odds=0.5, then $\log(0.5) =-0.69$

The Logistic Regression Formula

Bringing everything together,

$\log(\frac{p}{1-p}) = \beta_0+ \beta_1 x_1 + \dots + \beta_q x_q$

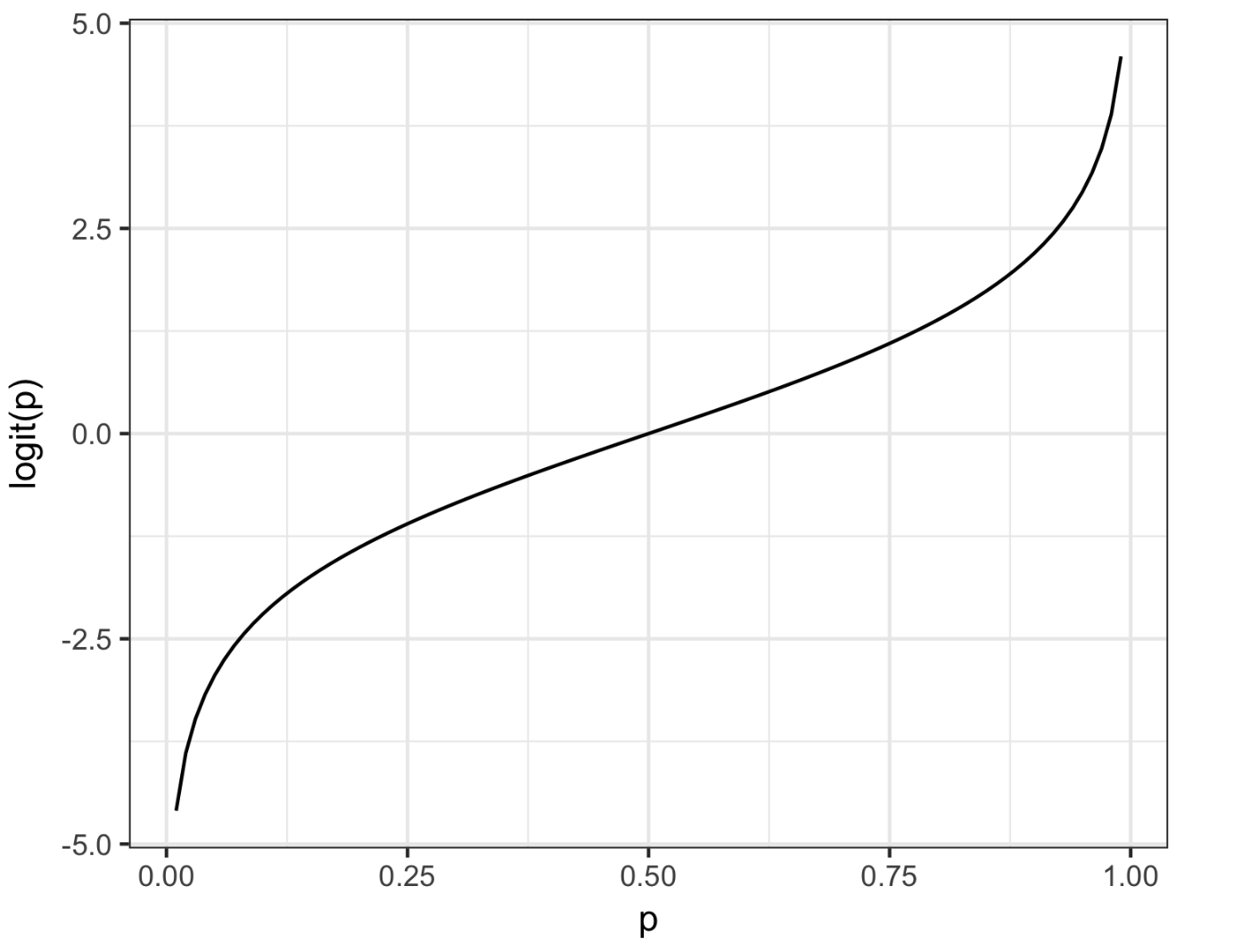

The transformation circle is finalized. We employ a linear model to estimate a probability, which we then map to a class label using a cutoff rule—any record with a probability exceeding this cutoff is classified as a 1. The graph below of the logic function maps a probability to a scale that is suitable for a linear model.

Mapping Probabilities to Class Labels

After estimating $p$, we use a cutoff threshold to classify records:

$\text{Class} = \begin{cases} 1, & \text{if } p > 0.5 \\ 0, & \text{if } p \leq 0.5 \end{cases}$

We can customize the cutoff:

If false negatives are costly (e.g., disease detection), we lower the threshold (e.g., classified as 1 if $p > 0.3$).
We raise the threshold if false positives are costly (e.g., fraud detection).

Logistic Regression vs. Linear Regression

Feature	Linear Regression	Logistic Regression
Outcome Type	Continuous (e.g., house price)	Binary (0 or 1)
Equation	$y=b_0+b_1X_1 + \dots$	$p=\frac{1}{e^{-(\beta_0 + \beta_1X_1 + \dots)}}$
Method	Ordinary Least Squares (OLS)	Maximum Likelihood Estimation (MLE)
Interpretation	Predicts actual values	Predicts probabilities
Output	Any real number	Probability (0 to 1)

Fitting Logistic Regression

In R, the glm function is used to fit a logistic regression, with the family parameter set to binomial.

logistic_model <- glm(outcome ~ payment_inc_ratio + purpose_ +
                      home_ + emp_len_ + borrower_score,
                      data=loan_data, family='binomial')

logistic_model
---
Call:  glm(formula = outcome ~ payment_inc_ratio + purpose_ + home_ +
           emp_len_ + borrower_score, family = "binomial", data = loan_data)

Coefficients:
               (Intercept)           payment_inc_ratio
                   1.63809                     0.07974
purpose_debt_consolidation    purpose_home_improvement
                   0.24937                     0.40774
    purpose_major_purchase             purpose_medical
                   0.22963                     0.51048
             purpose_other      purpose_small_business
                   0.62066                     1.21526
                  home_OWN                   home_RENT
                   0.04833                     0.15732
         emp_len_ > 1 Year              borrower_score
                  -0.35673                    -4.61264

Degrees of Freedom: 45341 Total (i.e. Null);  45330
Residual Null Deviance:	    62860
Residual Deviance: 57510 	AIC: 57540

The response variable indicates the outcome: it assigns a value of $0$ if the loan is paid off and $1$ if it defaults. The variables purpose_ and home_ represent the loan’s purpose and the borrower’s homeownership status. Like linear regression, a factor variable with $P$ levels are represented using $P – 1$ columns.

The reference levels for these factors are credit_card and MORTGAGE. The variable borrower_score, ranging from $0$ to $1$, indicates a borrower’s creditworthiness, from poor to excellent. This score was generated using K-Nearest Neighbor analysis based on various other variables.

In Python, the LogisticRegression class from sklearn.linear_model is utilized. The penalty and C parameters help prevent overfitting through L1 or L2 regularization, which is enabled by default. We can assign a significant value to C to fit the model without regularization. The solver parameter specifies the minimizer, with liblinear being the default option.
```
predictors = ['payment_inc_ratio', 'purpose_', 'home_', 'emp_len_',
              'borrower_score']
outcome = 'outcome'
X = pd.get_dummies(loan_data[predictors], prefix='', prefix_sep='',
                   drop_first=True)
y = loan_data[outcome]

logit_reg = LogisticRegression(penalty='l2', C=1e42, solver='liblinear')
logit_reg.fit(X, y)
```
Unlike R, scikit-learn determines classes based on the distinct values in y (paid off and default). The classes are sorted alphabetically within the framework, which results in coefficients in reverse order compared to those in R. The predict method provides the class label, while predict_proba yields the probabilities based on the sequence in logit_reg.classes_.
