Practical Statistics for Data Scientists: Logistic Regression (3) Assessing the Model

Assessing the Model

Once we’ve fit a logistic regression model, the next step is model evaluation—understanding which predictors matter, how well the model fits the data, and how to interpret what the model tells us.

Like other classification techniques, logistic regression is evaluated on its accuracy in classifying new data. Similar to linear regression, standard statistical tools are available to analyze and enhance the model.

• R provides the estimated coefficients, standard error (SE), z-value, and p-value.

  summary(logistic_model)
  ---
  Call:
  glm(formula = outcome ~ payment_inc_ratio + purpose_ + home_ +
      emp_len_ + borrower_score, family = "binomial", data = loan_data)

  Deviance Residuals:
       Min        1Q    Median        3Q       Max
  -2.51951  -1.06908  -0.05853   1.07421   2.15528

  Coefficients:
                              Estimate Std. Error z value Pr(>|z|)
  (Intercept)                 1.638092   0.073708  22.224  < 2e-16 ***
  payment_inc_ratio           0.079737   0.002487  32.058  < 2e-16 ***
  purpose_debt_consolidation  0.249373   0.027615   9.030  < 2e-16 ***
  purpose_home_improvement    0.407743   0.046615   8.747  < 2e-16 ***
  purpose_major_purchase      0.229628   0.053683   4.277 1.89e-05 ***
  purpose_medical             0.510479   0.086780   5.882 4.04e-09 ***
  purpose_other               0.620663   0.039436  15.738  < 2e-16 ***
  purpose_small_business      1.215261   0.063320  19.192  < 2e-16 ***
  home_OWN                    0.048330   0.038036   1.271    0.204
  home_RENT                   0.157320   0.021203   7.420 1.17e-13 ***
  emp_len_ > 1 Year          -0.356731   0.052622  -6.779 1.21e-11 ***
  borrower_score             -4.612638   0.083558 -55.203  < 2e-16 ***
  ---
  Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

  (Dispersion parameter for binomial family taken to be 1)

      Null deviance: 62857  on 45341  degrees of freedom
  Residual deviance: 57515  on 45330  degrees of freedom
  AIC: 57539

  Number of Fisher Scoring iterations: 4


• In Python, the statsmodels package includes implementing generalized linear models (GLM) that offer equally comprehensive information.

  y_numters = [1 if yi == 'default' else 0 for yi in y]
  logit_reg_sm = sm.GLM(y_numbers, X.assign(const=1),
                        family=sm.families.Binomial())
  logit_result = logit_reg_sm.fit()
  logit_result.summary()


Interpreting the p-value comes with the same caveat as in regression. It should be seen more as a relative indicator of variable importance than a formal statistical significance measure. A logistic regression model with a binary response lacks an associated RMSE or R-squared. Instead, it is generally evaluated using broader classification metrics.

Many concepts from linear regression also apply to the context of logistic regression (and other GLMs). For example, we can employ stepwise regression, fit interaction terms, or include spline terms. The same issues regarding confounding and correlated variables are relevant to logistic regression as well.

• We can fit generalized additive models using the mgcv package in R

  logistic_gam <- gam(outcome ~ s(payment_inc_ratio) + purpose_ +
                      home_ + emp_len_ + s(borrower_score),
                      data=loan_data, family='binomial')


• In Python, the formula interface of statsmodels also supports these extensions.

  import statsmodels.formula.api as smf
  formula =('outcome ~ bs(payment_inc_ratio, df=4) + purpose_ + ' +
            'home_ + emp_len_ + bs(borrower_score, df=4)')
  model = smf.glm(formula=formula, data=loan_data, family=sm.families.Binomial())
  results = model.fit()


Analysis of Residuals

One area where logistic regression differs from linear regression is in the analysis of the residuals.

• As in linear regression, it is straightforward to compute partial residuals in R.

  terms <- predict(logistic_gam, type='terms')
  partial_resid <- resid(logistic_model) + terms
  df <- data.frame(payment_inc_ratio = loan_data[, 'payment_inc_ratio'],
                   terms = terms[, 's(payment_inc_ratio)'],
                   partial_resid = partial_resid[, 's(payment_inc_ratio)'])
  ggplot(df, aes(x=payment_inc_ratio, y=partial_resid, solid = FALSE)) +
    geom_point(shape=46, alpha=0.4) +
    geom_line(aes(x=payment_inc_ratio, y=terms),
              color='red', alpha=0.5, size=1.5) +
    labs(y='Partial Residual')

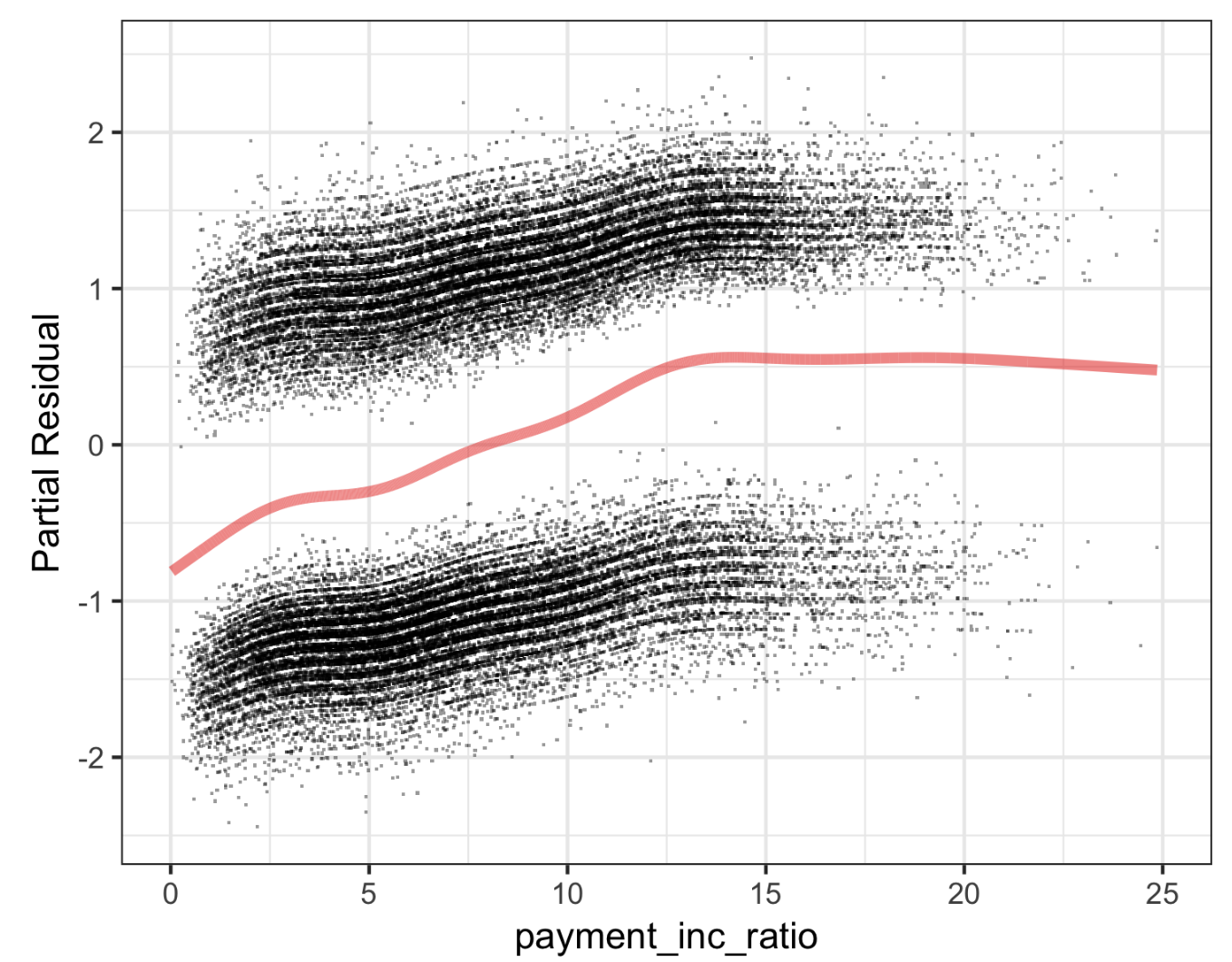

  The resulting plot is as follows: the estimated fit, depicted by the line, lies between two sets of point clouds. The upper cloud **represents a response of 1 (defaulted loans), while **the lower cloud represents a response of 0 (loans paid off). This pattern is typical of residuals from a logistic regression, as the output is binary.

The prediction is a logit (the logarithm of the odds ratio), always a finite value. Actual values (0 or 1) correspond to an infinite logit, leading to residuals that never equal 0. Thus, points group above or below the fitted line in the partial residual plot. Although partial residuals in logistic regression are less valuable than in linear regression, they confirm nonlinear behavior and identify influential records.
