Practical Statistics for Data Scientists: Boosting (2) (Regularization, Hyperparameters & Cross-Validation)

Regularization

Applying XGBoost without careful consideration can result in unstable models due to overfitting the training data.

The issue of overfitting has two main aspects:

• The model’s accuracy on new data not in the training set will be degraded.
• The predictions from the model are highly variable, leading to unstable results.

All modeling methods can risk overfitting. For instance, including excessive variables in a regression equation may lead to misleading predictions. Fortunately, in most statistical approaches, careful choice of predictor variables can help prevent overfitting. Additionally, random forests typically yield a good model even without parameter adjustments. However, overfitting in XGBoost can occur relatively quickly if we continue adding trees without managing the complexity.

XGBoost provides two regularization parameters.

Parameter	Name	Type	Effect
lambda	reg_lambda	L2 Regularization (Euclidean distance)	Penalizes large feature weights smoothly.
alpha	reg_alpha	L1 Regularization (Manhattan distance)	Encourages sparsity by forcing some weights to exactly 0

Easily, we could think as follows:

• lambda → “Don’t allow any one feature to have too much influence.”
• alpha → “Maybe some features should have no influence at all.”

How Can We Spot Overfitting?

Let’s consider an example to illustrate this. Fit the xgboost model to the loan data using a training set that includes all the variables.

• In R

  seed <- 400820
  predictors <- data.matrix(loan_data[, -which(names(loan_data) %in%
                                         'outcome')])
  label <- as.numeric(loan_data$outcome) - 1
  test_idx <- sample(nrow(loan_data), 10000)

  xgb_default <- xgboost(data=predictors[-test_idx,], label=label[-test_idx],
                         objective='binary:logistic', nrounds=250, verbose=0)
  pred_default <- predict(xgb_default, predictors[test_idx,])
  error_default <- abs(label[test_idx] - pred_default) > 0.5
  xgb_default$evaluation_log[250,]
  mean(error_default)
  ---
  iter train_error
  1:  250    0.133043

  [1] 0.3529


• In Python

  predictors = ['loan_amnt', 'term', 'annual_inc', 'dti', 'payment_inc_ratio',
                'revol_bal', 'revol_util', 'purpose', 'delinq_2yrs_zero',
                'pub_rec_zero', 'open_acc', 'grade', 'emp_length', 'purpose_',
                'home_', 'emp_len_', 'borrower_score']
  outcome = 'outcome'

  X = pd.get_dummies(loan_data[predictors], drop_first=True)
  y = pd.Series([1 if o == 'default' else 0 for o in loan_data[outcome]])

  train_X, valid_X, train_y, valid_y = train_test_split(X, y, test_size=10000)

  xgb_default = XGBClassifier(objective='binary:logistic', n_estimators=250,
                              max_depth=6, reg_lambda=0, learning_rate=0.3,
                              subsample=1)
  xgb_default.fit(train_X, train_y)

  pred_default = xgb_default.predict_proba(valid_X)[:, 1]
  error_default = abs(valid_y - pred_default) > 0.5
  print('default: ', np.mean(error_default))


The test set includes 10,000 random records, while the training set holds the rest. Boosting yields a training error rate of 13.3%, but the test set has a higher error rate of 35.3%. This discrepancy arises from overfitting; while boosting captures training variability, the rules do not generalize well to new data.

Boosting includes parameters to prevent overfittings, such as eta (learning_rate) and subsample.

Regularization modifies the cost function to penalize model complexity.

Decision trees minimize cost criteria like Gini’s impurity score. In XGBoost, we can add a term to the cost function to measure a model’s complexity.

XGBoost has two regularization parameters: alpha (L1-regularization) and lambda(L2-regularization). Increasing these penalizes complexity and reduces tree size. For instance, setting `lambda` to 1000 in R shows this effect.

• In R

  xgb_penalty <- xgboost(data=predictors[-test_idx,], label=label[-test_idx],
                         params=list(eta=.1, subsample=.63, lambda=1000),
                         objective='binary:logistic', nrounds=250, verbose=0)
  pred_penalty <- predict(xgb_penalty, predictors[test_idx,])
  error_penalty <- abs(label[test_idx] - pred_penalty) > 0.5
  xgb_penalty$evaluation_log[250,]
  mean(error_penalty)
  ---
  iter train_error
  1:  250     0.30966

  [1] 0.3286


• We use scikit-learn API in Python, which has the parameters reg_alpha and reg_lambda.

  xgb_penalty = XGBClassifier(objective='binary:logistic', n_estimators=250,
                              max_depth=6, reg_lambda=1000, learning_rate=0.1,
  														subsample=0.63)
  xgb_penalty.fit(train_X, train_y)
  pred_penalty = xgb_penalty.predict_proba(valid_X)[:, 1]
  error_penalty = abs(valid_y - pred_penalty) > 0.5
  print('penalty: ', np.mean(error_penalty))


The training error is only slightly lower than the test set error.

The predict method in R provides the ntreelimit argument to restrict predictions to the first i trees. As more models are added, this allows direct comparison of in-sample and out-of-sample error rates.

• In R

  error_default <- rep(0, 250)
  error_penalty <- rep(0, 250)
  for(i in 1:250){
    pred_def <- predict(xgb_default, predictors[test_idx,], ntreelimit=i)
    error_default[i] <- mean(abs(label[test_idx] - pred_def) >= 0.5)
    pred_pen <- predict(xgb_penalty, predictors[test_idx,], ntreelimit=i)
    error_penalty[i] <- mean(abs(label[test_idx] - pred_pen) >= 0.5)
  }


• In Python, we can call the predict_proba method with the ntree_limit argument.

  results = []
  for i in range(1, 250):
      train_default = xgb_default.predict_proba(train_X, ntree_limit=i)[:, 1]
      train_penalty = xgb_penalty.predict_proba(train_X, ntree_limit=i)[:, 1]
      pred_default = xgb_default.predict_proba(valid_X, ntree_limit=i)[:, 1]
      pred_penalty = xgb_penalty.predict_proba(valid_X, ntree_limit=i)[:, 1]
      results.append({
          'iterations': i,
          'default train': np.mean(abs(train_y - train_default) > 0.5),
          'penalty train': np.mean(abs(train_y - train_penalty) > 0.5),
          'default test': np.mean(abs(valid_y - pred_default) > 0.5),
          'penalty test': np.mean(abs(valid_y - pred_penalty) > 0.5),
      })

  results = pd.DataFrame(results)
  results.head()


The model’s output shows errors for the training set in xgb_default$evaluation_log. Combining these with out-of-sample errors allows us to plot errors against iterations.

• In R

  errors <- rbind(xgb_default$evaluation_log,
                  xgb_penalty$evaluation_log,
                  ata.frame(iter=1:250, train_error=error_default),
                  data.frame(iter=1:250, train_error=error_penalty))
  errors$type <- rep(c('default train', 'penalty train',
                       'default test', 'penalty test'), rep(250, 4))
  ggplot(errors, aes(x=iter, y=train_error, group=type)) +
  	geom_line(aes(linetype=type, color=type))


• In Python, we can use the pandas plot method to create the line graph.

  ax = results.plot(x='iterations', y='default test')
  results.plot(x='iterations', y='penalty test', ax=ax)
  results.plot(x='iterations', y='default train', ax=ax)
  results.plot(x='iterations', y='penalty train', ax=ax)

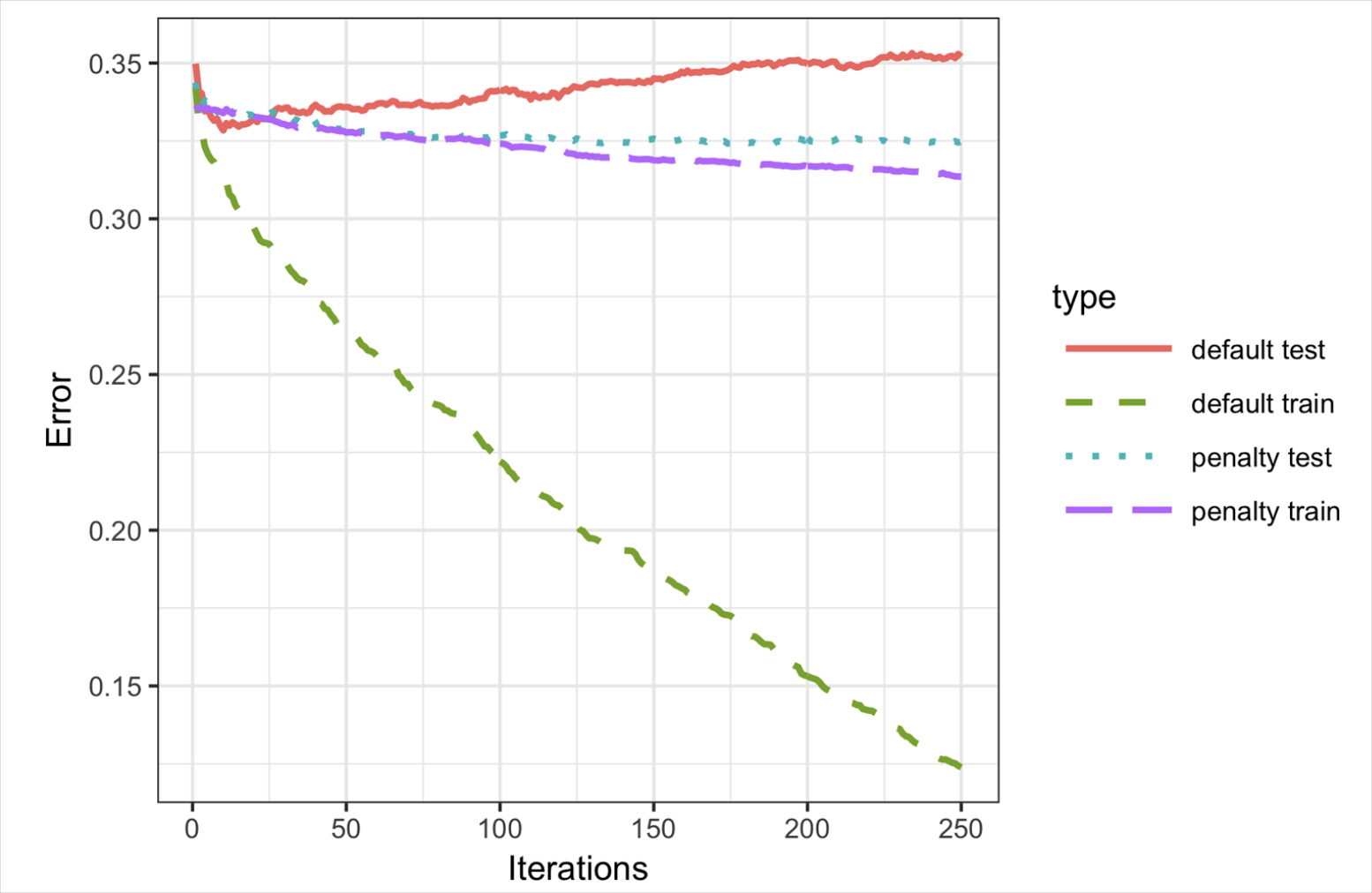

The result displayed in the figure below shows how the default model steadily improves the accuracy for the training set but actually worsens for the test set. The penalized model does not exhibit this behavior.

In the plot, we could observe the following:

• Default Model:
  • Training error steadily goes down (keeps fitting better and better).
  • Validation error first goes down but then starts to go back up (classic sign of overfitting).
• Penalized Model:
  • Training error goes down slower.
  • Validation error stays low and stable (good generalization).

Without regularization, XGBoost overfits fast. With strong regularization, XGBoost stays robust.

Hyperparameters

xgboost has many hyperparameters, and their selection can significantly impact model performance. To guide our choices amid numerous options, we can use cross-validation. This method splits the data into K groups or folds. For each fold, a model is trained on the data outside and evaluated on the fold data, providing accuracy on out-of-sample data. The best hyperparameters are those resulting in the lowest average error across folds.

We apply the technique to parameter selection for xgboost, focusing on the shrinkage parameter eta and the maximum tree depth max_depth. Max_depth sets the maximum leaf depth from the root, defaulting to six, which helps control overfitting since deeper trees can overfit the data.

• First, we set up the folds and parameter list in R

  N <- nrow(loan_data)
  fold_number <- sample(1:5, N, replace=TRUE)
  params <- data.frame(eta = rep(c(.1, .5, .9), 3),
                       max_depth = rep(c(3, 6, 12), rep(3,3)))


  Now we compute the error for each model and fold with five folds:

  error <- matrix(0, nrow=9, ncol=5)
  for(i in 1:nrow(params)){
    for(k in 1:5){
      fold_idx <- (1:N)[fold_number == k]
      xgb <- xgboost(data=predictors[-fold_idx,], label=label[-fold_idx],
                     params=list(eta=params[i, 'eta'],
                                 max_depth=params[i, 'max_depth']),
                     objective='binary:logistic', nrounds=100, verbose=0)
      pred <- predict(xgb, predictors[fold_idx,])
      error[i, k] <- mean(abs(label[fold_idx] - pred) >= 0.5)
    }
  }


• This Python code generates all hyperparameter combinations and evaluates models for each.

  idx = np.random.choice(range(5), size=len(X), replace=True)
  error = []
  for eta, max_depth in product([0.1, 0.5, 0.9], [3, 6, 9]):
      xgb = XGBClassifier(objective='binary:logistic', n_estimators=250,
                          max_depth=max_depth, learning_rate=eta)
      cv_error = []
      for k in range(5):
          fold_idx = idx == k
          train_X = X.loc[~fold_idx]; train_y = y[~fold_idx]
          valid_X = X.loc[fold_idx]; valid_y = y[fold_idx]

          xgb.fit(train_X, train_y)
          pred = xgb.predict_proba(valid_X)[:, 1]
          cv_error.append(np.mean(abs(valid_y - pred) > 0.5))
      error.append({
          'eta': eta,
          'max_depth': max_depth,
          'avg_error': np.mean(cv_error)
      })
      print(error[-1])
  errors = pd.DataFrame(error)


  Fitting 45 models takes time. Errors are stored in a matrix with models as rows and folds as columns. We compare error rates for different parameter sets using the rowMeans function:

  avg_error <- 100 * round(rowMeans(error), 4)
  cbind(params, avg_error)
  ---
    eta max_depth avg_error
  1 0.1         3     32.90
  2 0.5         3     33.43
  3 0.9         3     34.36
  4 0.1         6     33.08
  5 0.5         6     35.60
  6 0.9         6     37.82
  7 0.1        12     34.56
  8 0.5        12     36.83
  9 0.9        12     38.18


  Cross-validation indicates that shallower trees combined with a lower learning rate of eta produce more accurate results. Given that these models demonstrate greater stability, the optimal parameters to consider are eta=0.1 and max_depth=3 (or potentially max_depth=6).

Important XGBoost Hyperparameters to Know

Hyperparameter	Purpose
eta / learning_rate	Shrinks the contribution of each new tree. Smaller values = slower learning but often better results.
nrounds / n_estimators	Number of boosting rounds. Need more if eta is small.
max_depth	Maximum depth of trees. Shallower trees (like depth 3) reduce overfitting.
subsample	Use only a fraction of the data for each tree, helping to generalize better.
colsample_bytree	Use only a fraction of features for each tree.
lambda / alpha	Regularization terms to penalize complexity. Helps avoid overfitting.
