Day150 - STAT Review: Unsupervised Learning (3)
Practical Statistics for Data Scientists: K-Means Clustering (1) (A Simple Example & K-Means Algorithm Code Source)
K-Means Clustering
K-Means Clustering is an unsupervised learning algorithm used to divide a dataset into K distinct, non-overlapping groups (clusters), such that the data points within each cluster are as similar as possible and as different as possible from points in other clusters.
The term “K” refers to the number of clusters we wish to find, and “means” refers to the mean (centroid) of each cluster.
Key Terms for K-Means Clustering
- Cluster
- A group of records that are similar.
- Cluster Mean
- The center of a cluster; the average of all data points assigned to the cluster.
- = Centroid
- K
- The number of clusters.
- Within-cluster sum of squares (WCSS)
- The sum of squared distances from each data point to its assigned cluster centroid.
K-means divides the data into K clusters by minimizing the sum of the squared distances of each record to the mean of its assigned cluster. This is the within-cluster sum of squares, or within-cluster SS. K-means does not guarantee that the clusters will have the same size; instead, it identifies the best-separated clusters.
A Simple Example
Start by considering a data set with n records and only two variables, x and y. We want to divide the data into $K=4$ clusters. This entails assigning each record $(x_i,y_i)$ to a cluster $k$. Given an assignment of $n_k$ records to cluster $k$, the center of the cluster $(x_k,y_k)$ is the average of the points in the cluster as follows.
$\bar{y}_k = \frac{1}{n_k} \sum_{i \in \\ \text{Cluster k}} y_i$
In clustering records with multiple variables (the typical case), the term “ cluster mean “ refers not to a single number but to the vector of the variables’ means.
The sum of squares within a cluster is given by the following.
K-means identifies the assignment of records that minimizes the within-cluster sum of squares across all four clusters, $SS1 + SS2 + SS3 + SS4$:
A typical use of clustering is identifying natural, distinct clusters within the data. Another application is partitioning the data into a predetermined number of separate groups, ensuring the clusters are as different as possible.
For example, suppose we want to divide daily stock returns into four groups. K-means clustering can separate the data into the best groupings. (Note that daily stock returns are reported in a way that is, in effect, standardized; thus, we do not need to normalize the data.)
-
In R, K-means clustering uses the
kmeans
function. For example, the following identifies four clusters based on the daily stock returns for ExxonMobil (XOM
) and Chevron(CVX
).df <- sp500_px[row.names(sp500_px)>='2011-01-01', c('XOM', 'CVX')] km <- kmeans(df, centers=4)
-
In Python, we use the
sklearn.clusters.KMeans
method fromscikit-learn
.df = sp500_px.loc[sp500_px.index >= '2011-01-01', ['XOM', 'CVX']] kmeans = KMeans(n_clusters=4).fit(df)
The cluster assignment for each record is provided as the cluster
component.
-
In R
df$cluster <- factor(km$cluster) head(df) --- XOM CVX cluster 2011-01-03 0.73680496 0.2406809 2 2011-01-04 0.16866845 -0.5845157 1 2011-01-05 0.02663055 0.4469854 2 2011-01-06 0.24855834 -0.9197513 1 2011-01-07 0.33732892 0.1805111 2 2011-01-10 0.00000000 -0.4641675 1
-
In Python, the cluster labels are available in the
labels_
field.df['cluster'] = kmeans.labels_ df.head()
The initial six records are allocated to either cluster 1 or cluster 2. The cluster means are also provided.
-
In R
centers <- data.frame(cluster=factor(1:4), km$centers) centers --- cluster XOM CVX 1 1 -0.3284864 -0.5669135 2 2 0.2410159 0.3342130 3 3 -1.1439800 -1.7502975 4 4 0.9568628 1.3708892
-
In
scikit-learn
, the cluster centers are available in thecluster_centers_
field.centers = pd.DataFrame(kmeans.cluster_centers_, columns=['XOM', 'CVX']) centers
Clusters 1 and 3 are “down” markets; clusters 2 and 4 are “up “ markets.
K-means uses random starting points, leading to differing results in subsequent runs and implementations. It’s essential to ensure fluctuations remain manageable.
In this example, with just two variables, it is straightforward to visualize the clusters and their means.
-
In R
ggplot(data=df, aes(x=XOM, y=CVX, color=cluster, shape=cluster)) + geom_point(alpha=.3) + geom_point(data=centers, aes(x=XOM, y=CVX), size=3, stroke=2)
-
In Python, the
seaborn
scatterplot
function simplifies coloring (hue
) and styling (style
) the points by a property.fig, ax = plt.subplots(figsize=(4, 4)) ax = sns.scatterplot(x='XOM', y='CVX', hue='cluster', style='cluster', ax=ax, data=df) ax.set_xlim(-3, 3) ax.set_ylim(-3, 3) centers.plot.scatter(x='XOM', y='CVX', ax=ax, s=50, color='black')

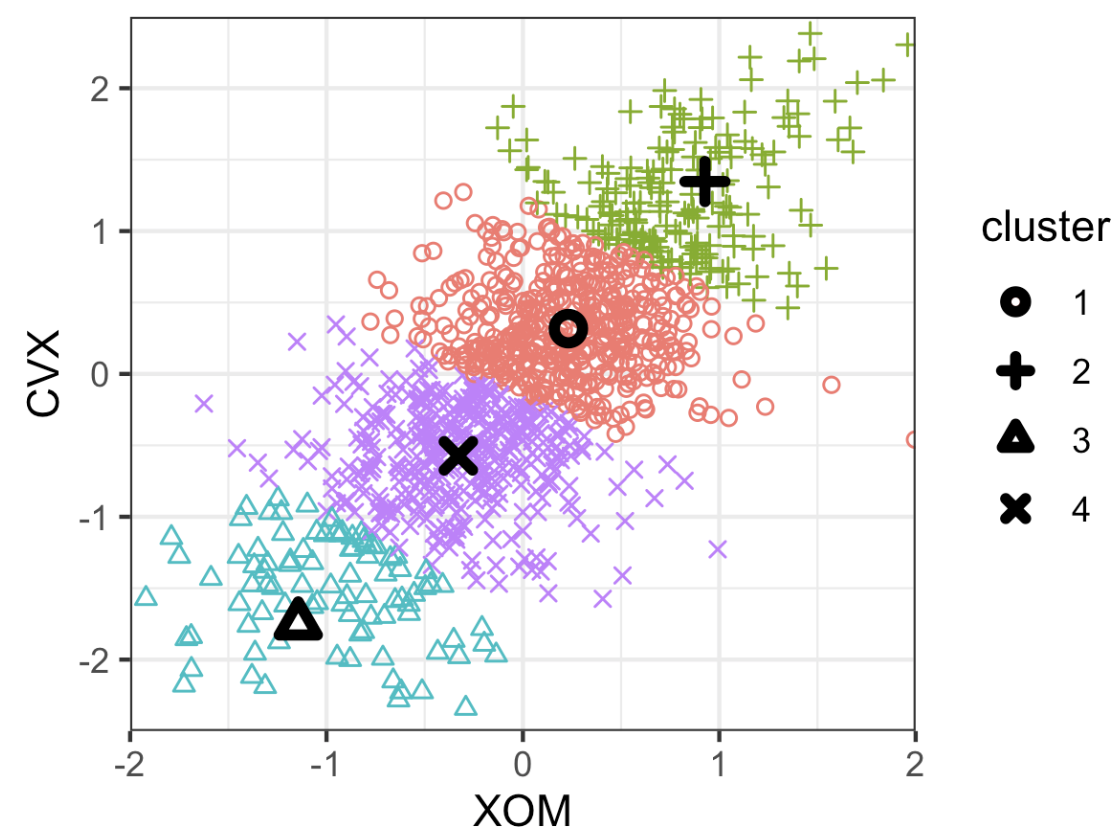

The result plot below shows the cluster assignments and the clustger means.

K-Means Algorithm
In general, K-means can be applied to a data set with p variables $X_1,…,X_p$. Although the exact solution to K-means is computationally challenging, heuristic algorithms offer an efficient method to compute a locally optimal solution.
The algorithm begins with a user-specified $K$ and an initial set of cluster means, then iterates through the following steps:
- Assign each record to the nearest cluster mean, as determined by squared distance.
- Calculate the new cluster means based on the record assignments.
The algorithm converges when the assignment of records to clusters does not change.
We should specify an initial set of cluster means for the first iteration. Typically, this is done by randomly assigning each record to one of the K clusters and then calculating the means of those clusters.
This algorithm may not find the best solution, so run it multiple times with different random samples for initialization. The K-means result is based on the iteration with the lowest within-cluster sum of squares.
-
In R, the
nstart
parameter of the kmeans function specifies the number of random starts. For example, the following code finds 5 clusters using 10 different starting cluster means:syms <- c( 'AAPL', 'MSFT', 'CSCO', 'INTC', 'CVX', 'XOM', 'SLB', 'COP', 'JPM', 'WFC', 'USB', 'AXP', 'WMT', 'TGT', 'HD', 'COST') df <- sp500_px[row.names(sp500_px) >= '2011-01-01', syms] km <- kmeans(df, centers=5, nstart=10)
The function returns the best solution from 10 starting points. Use
iter.max
to set the maximum number of iterations for each random start. -
In Python, the
scikit-learn
algorithm runs 10 times by default (n_init
). Use themax_iter
argument (default 300) to control iterations.syms = sorted(['AAPL', 'MSFT', 'CSCO', 'INTC', 'CVX', 'XOM', 'SLB', 'COP', 'JPM', 'WFC', 'USB', 'AXP', 'WMT', 'TGT', 'HD', 'COST']) top_sp = sp500_px.loc[sp500_px.index >= '2011-01-01', syms] kmeans = KMeans(n_clusters=5).fit(top_sp)
